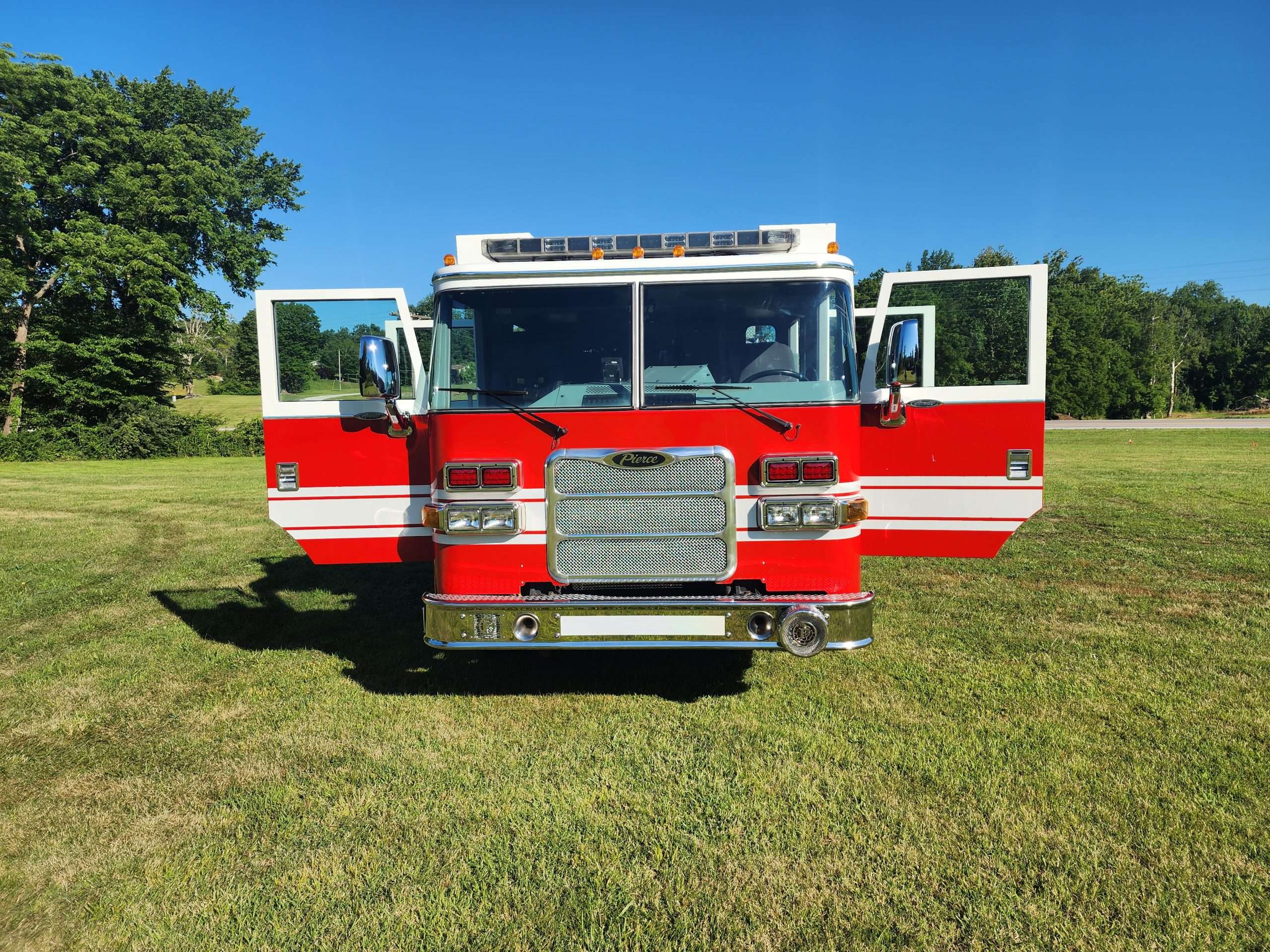

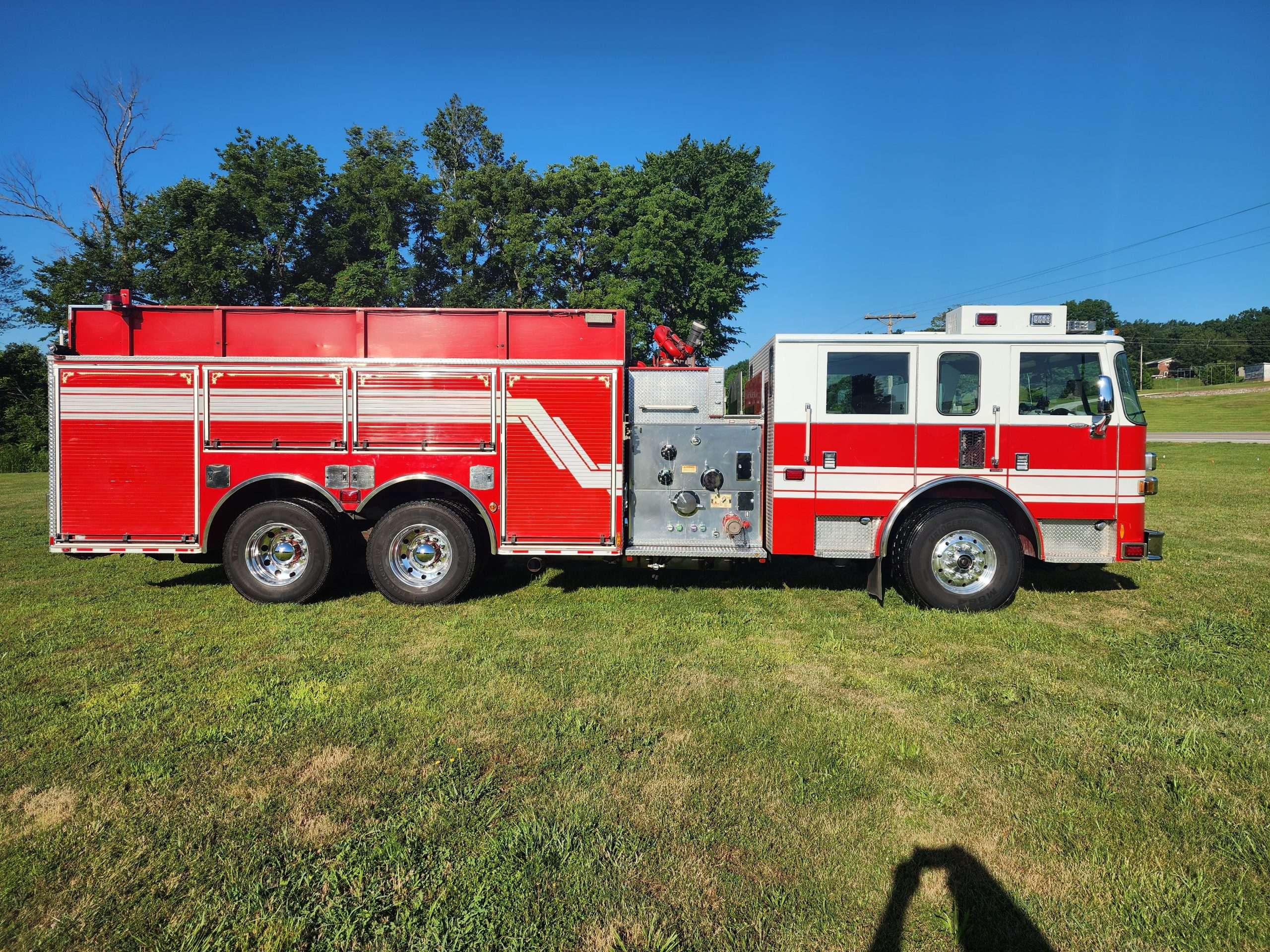

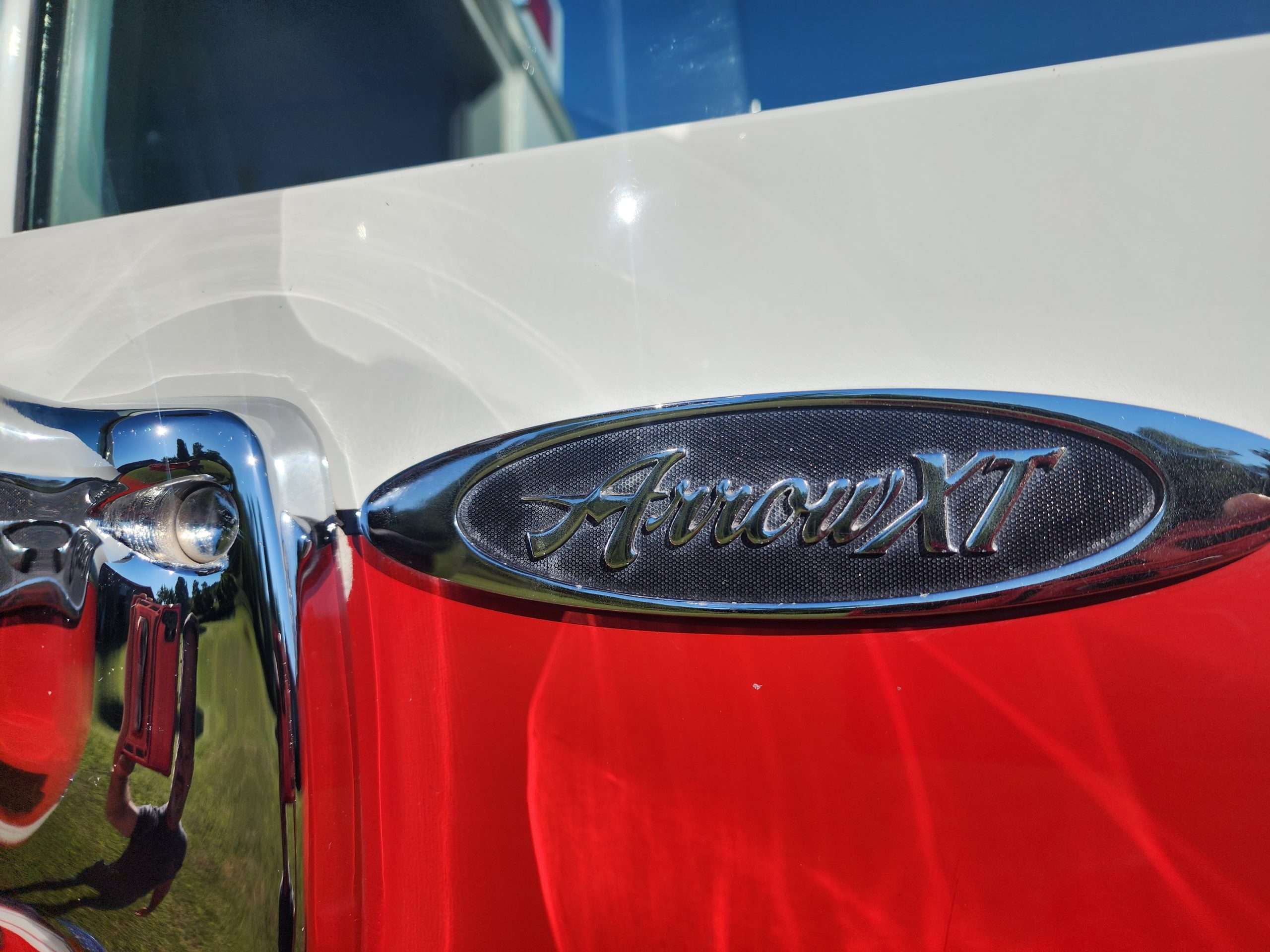

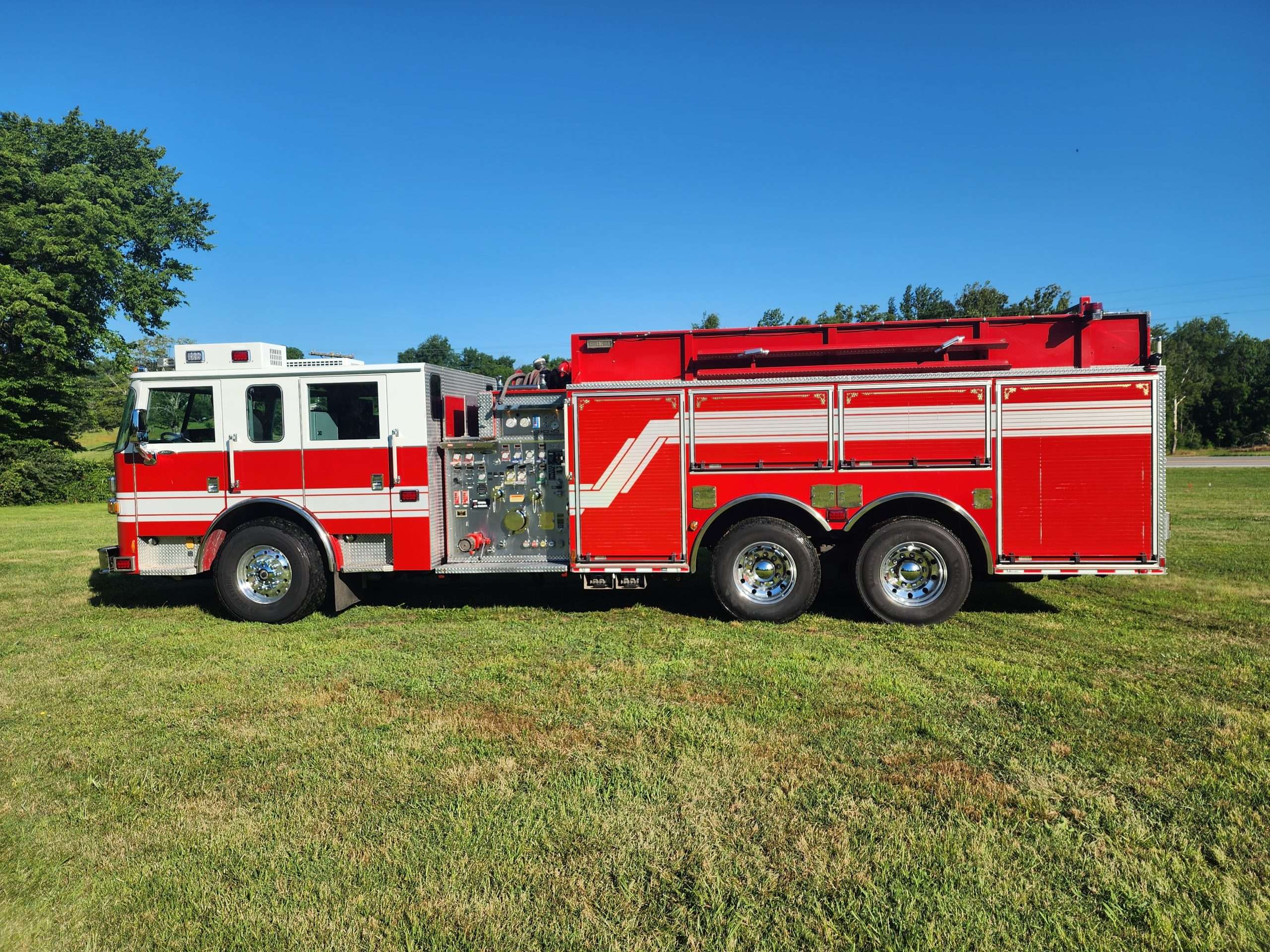

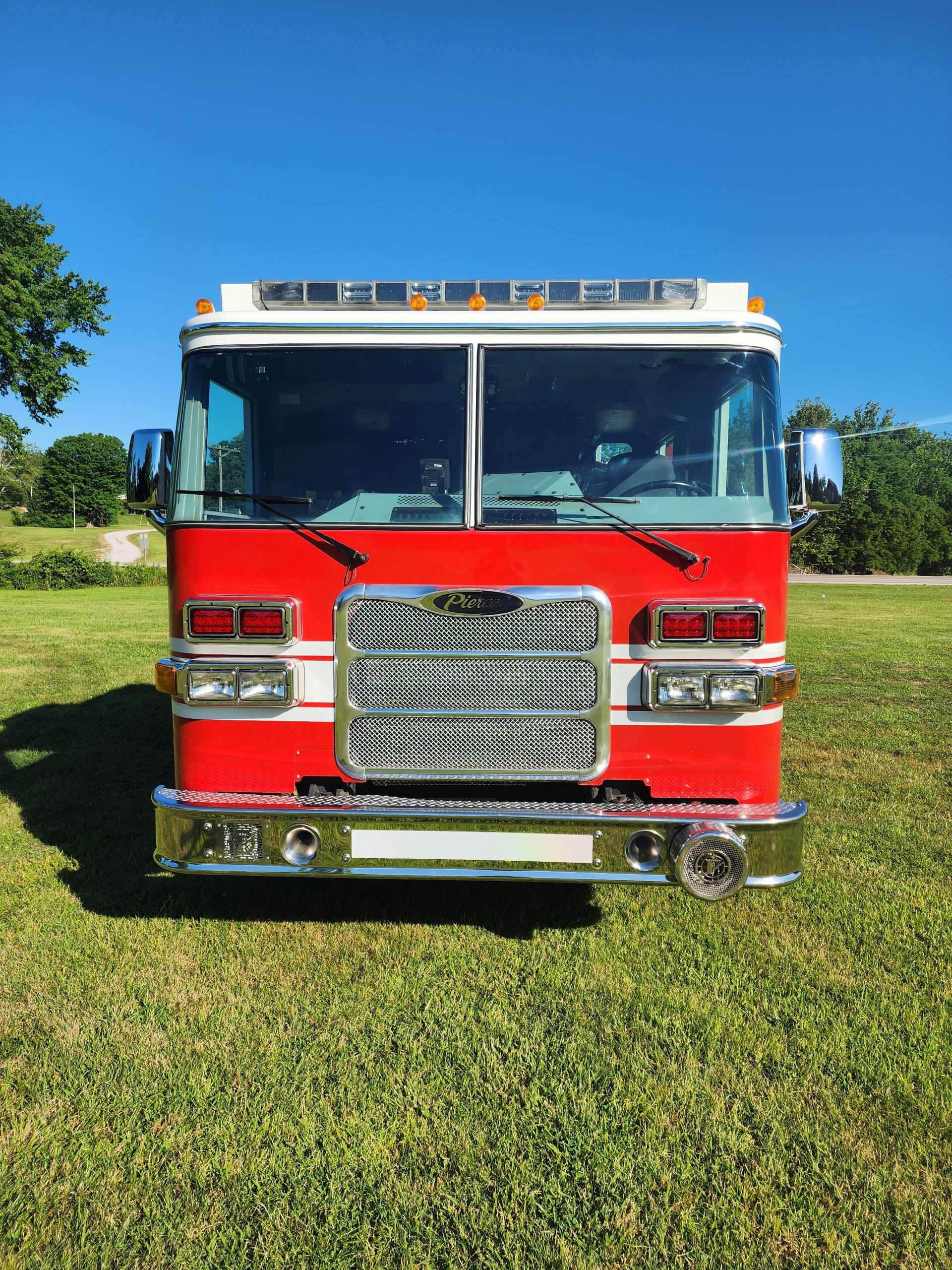

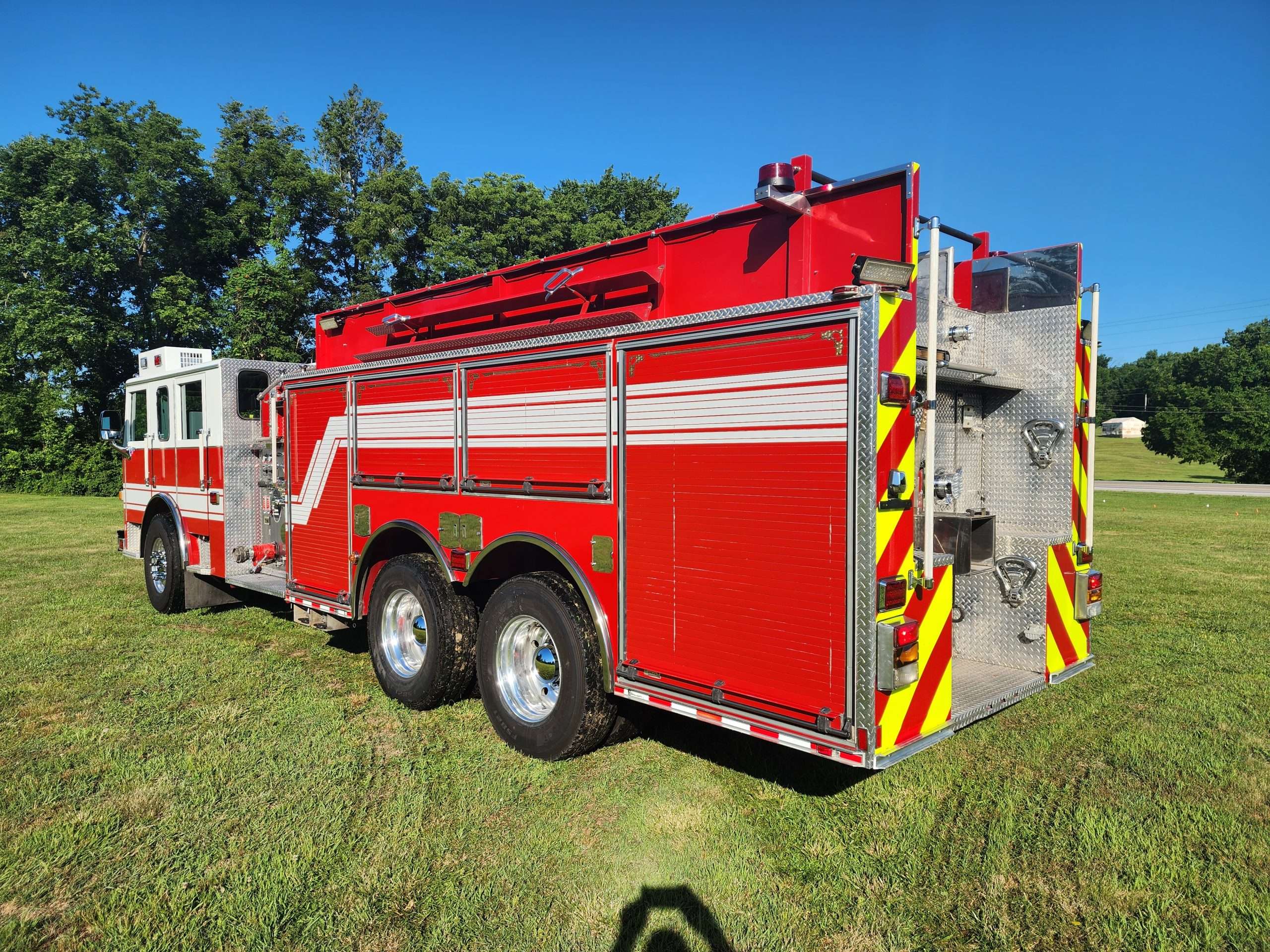

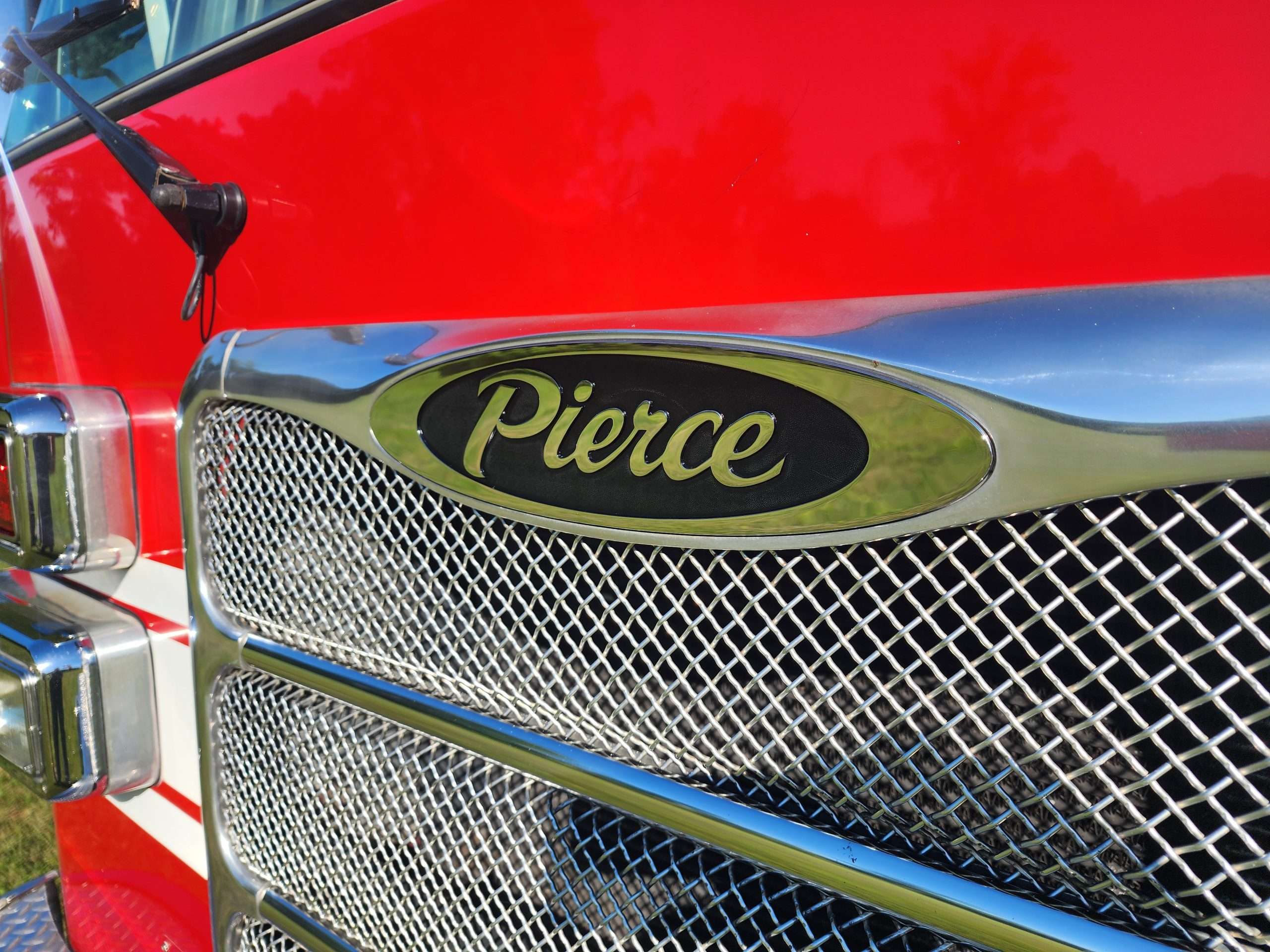

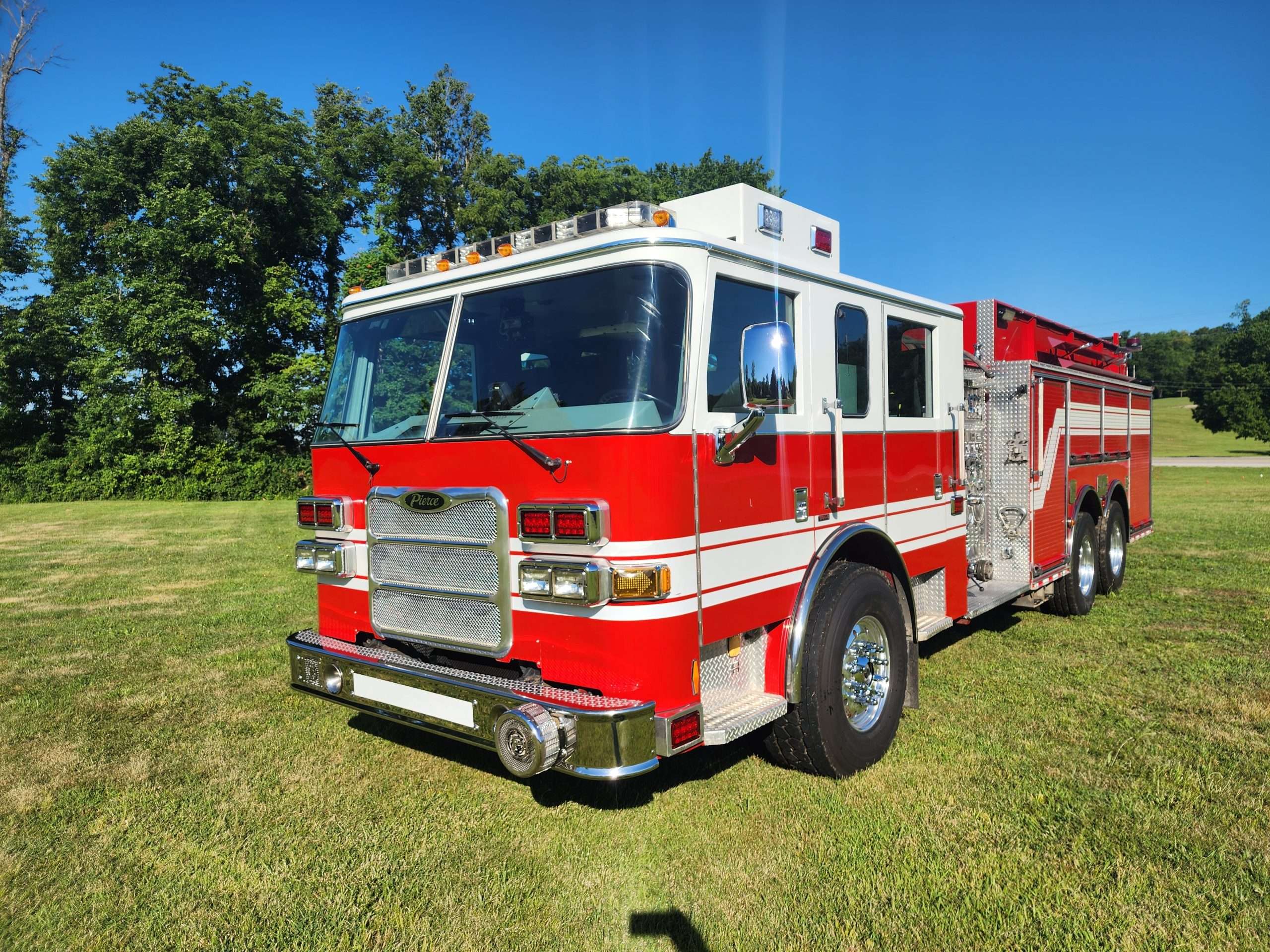

2006 Pierce Arrow XT
Detroit 60 Series 515 HP
Allison Automatic (4000 EVS)
Seats 5 (1 Driver/4 SCBA

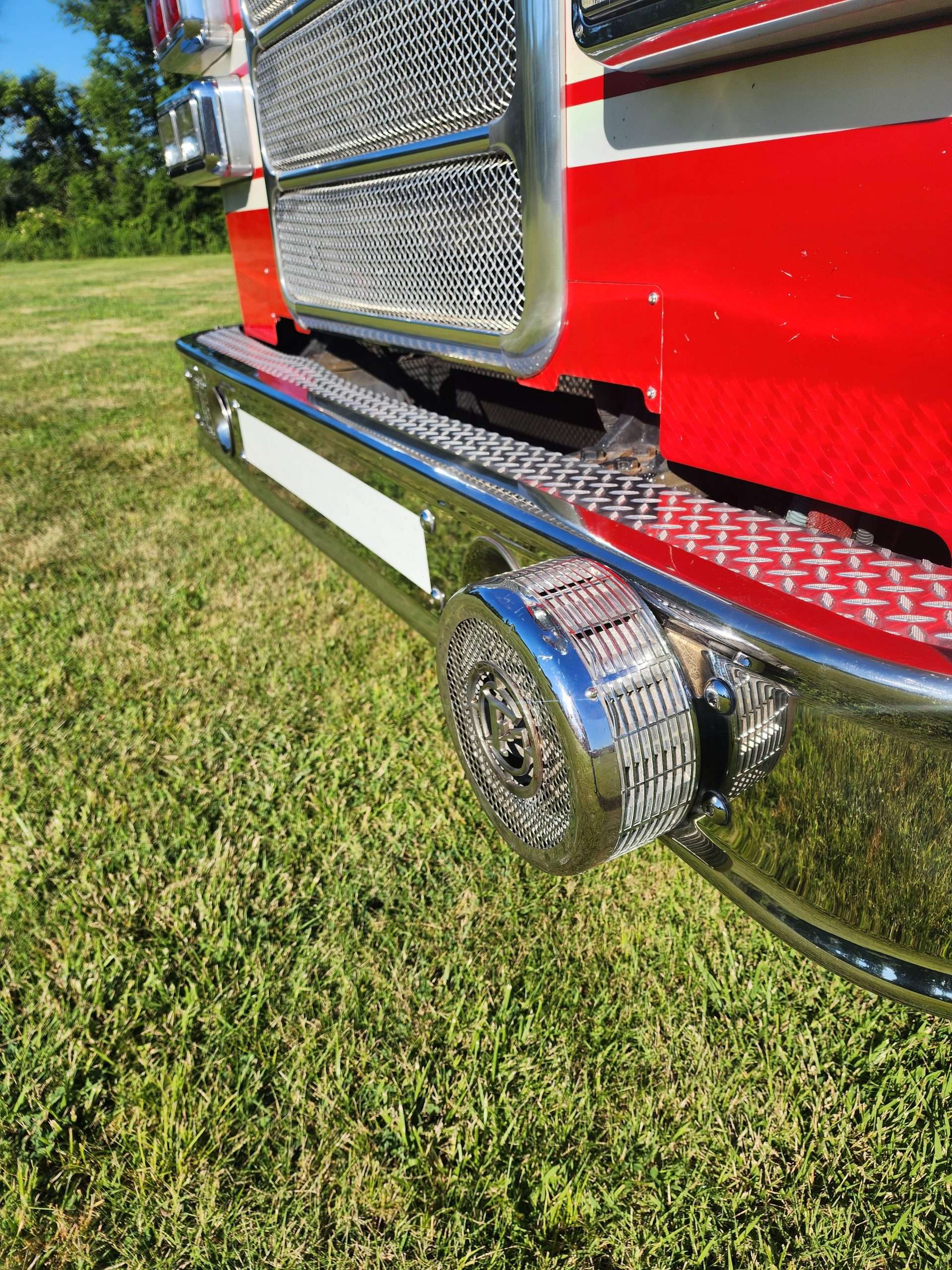

Air Horns
Aluminum Wheels
Hale Pump
9’11” Tall
34’10” Long

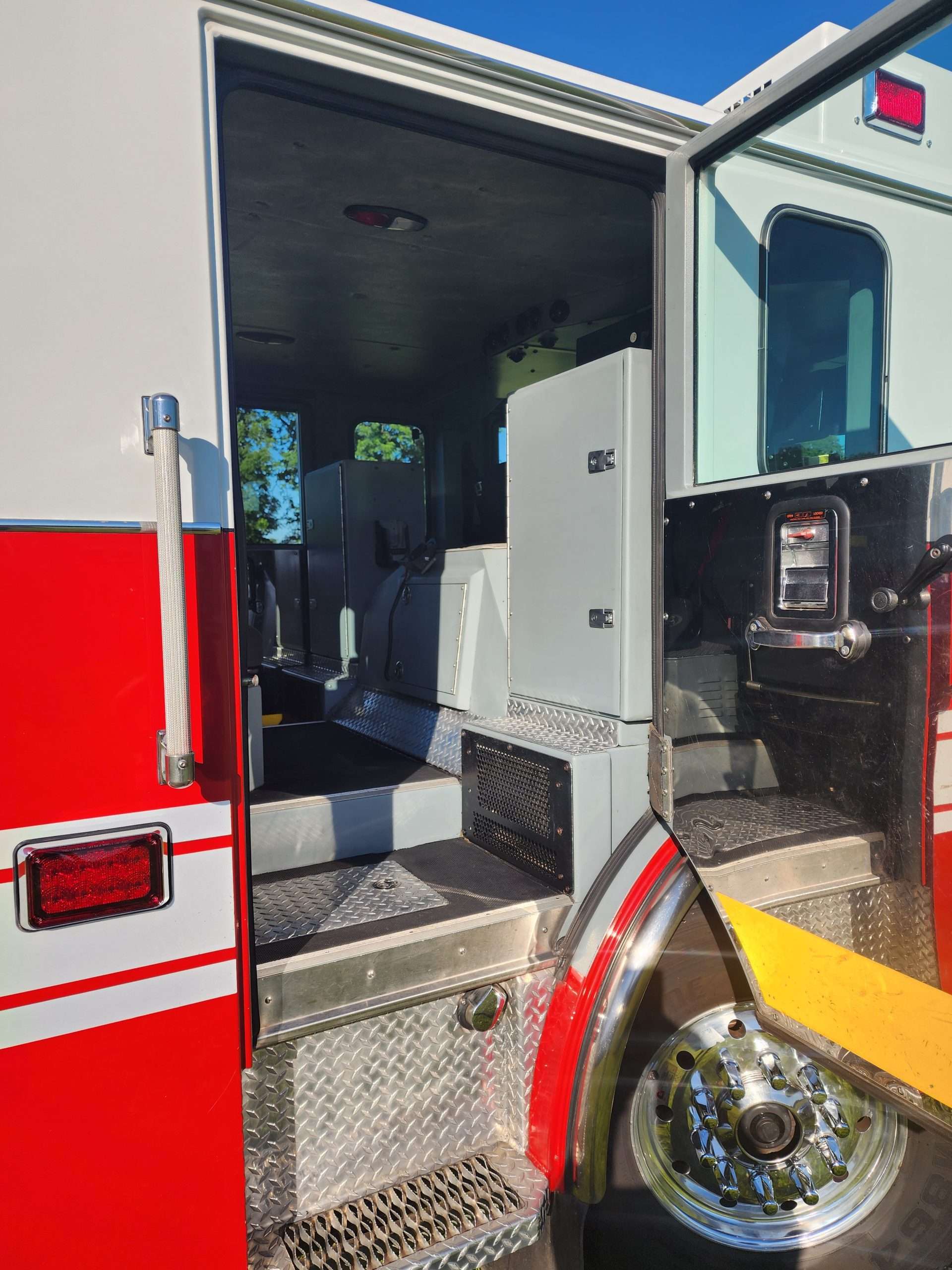

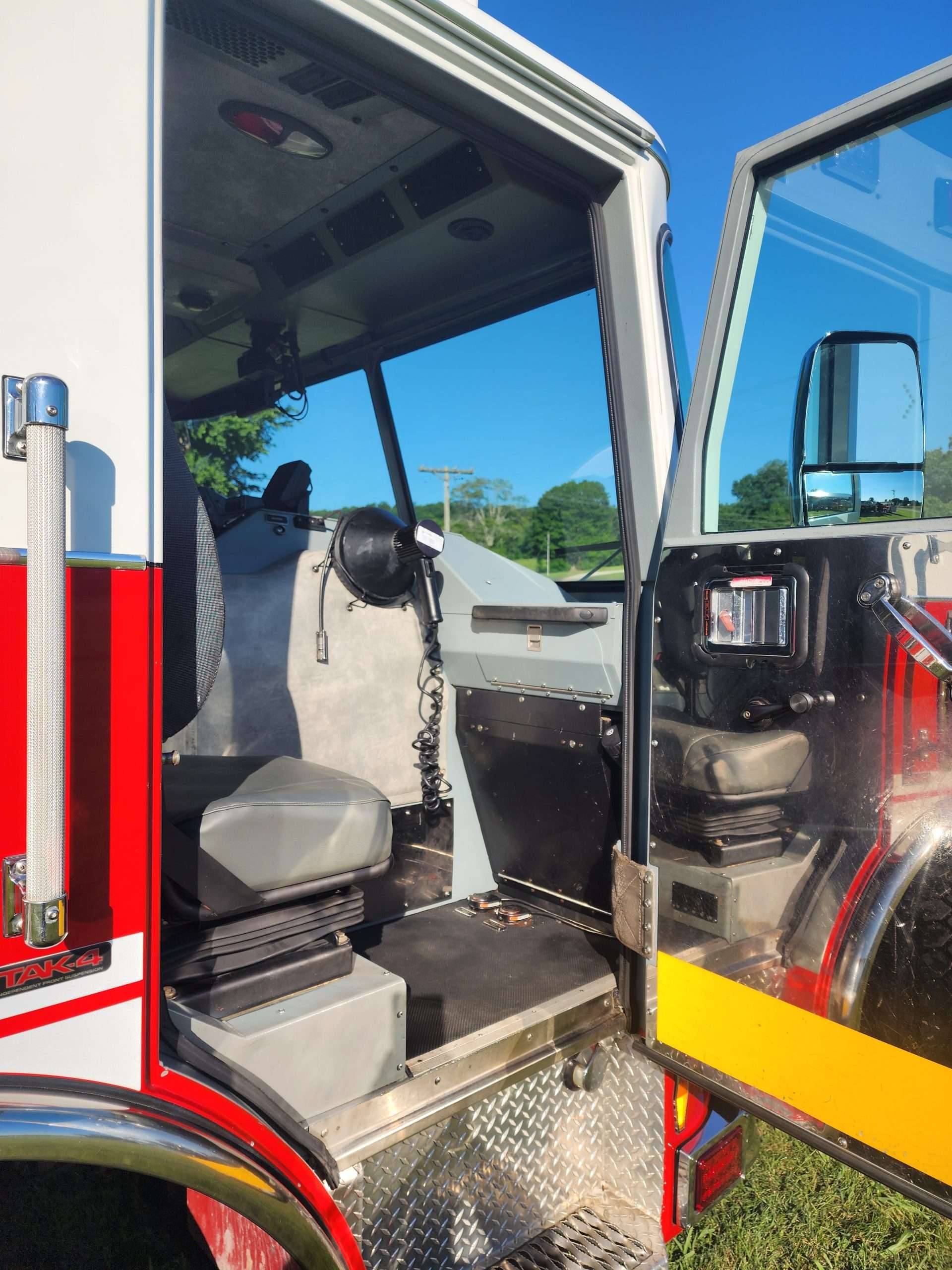

Custom 4-Door cab
Power Mirrors

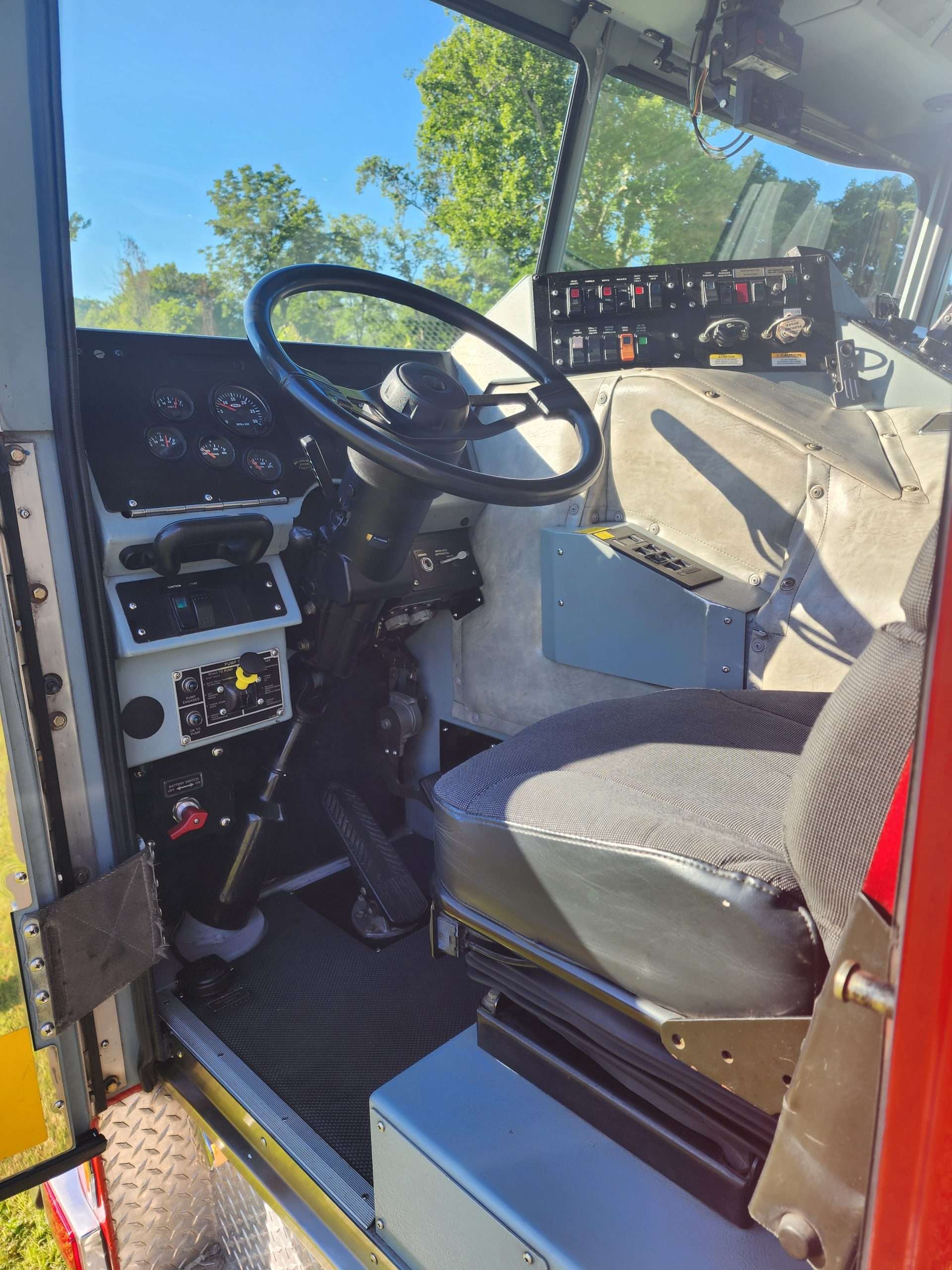

Air Ride Drivers Seat

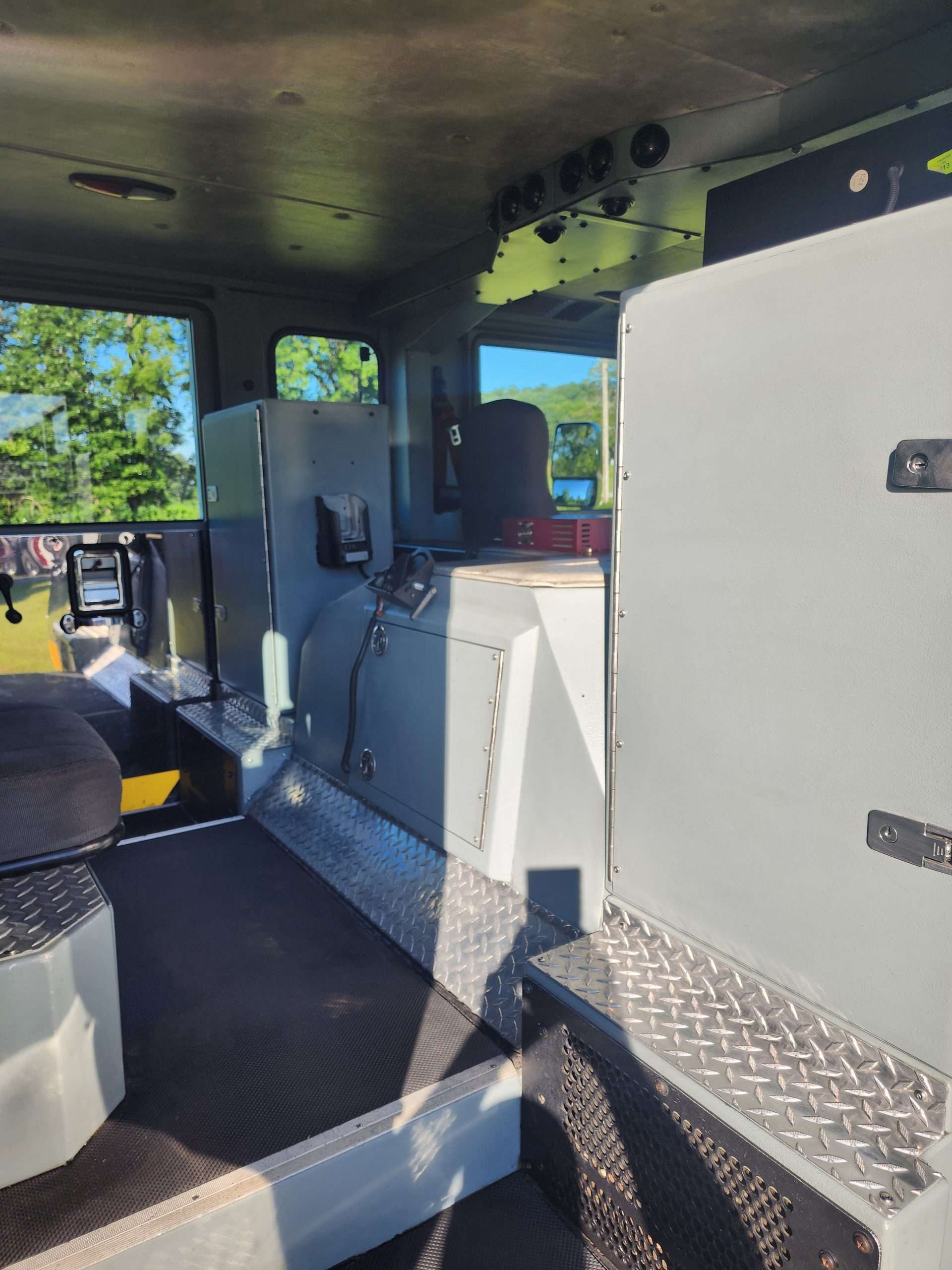

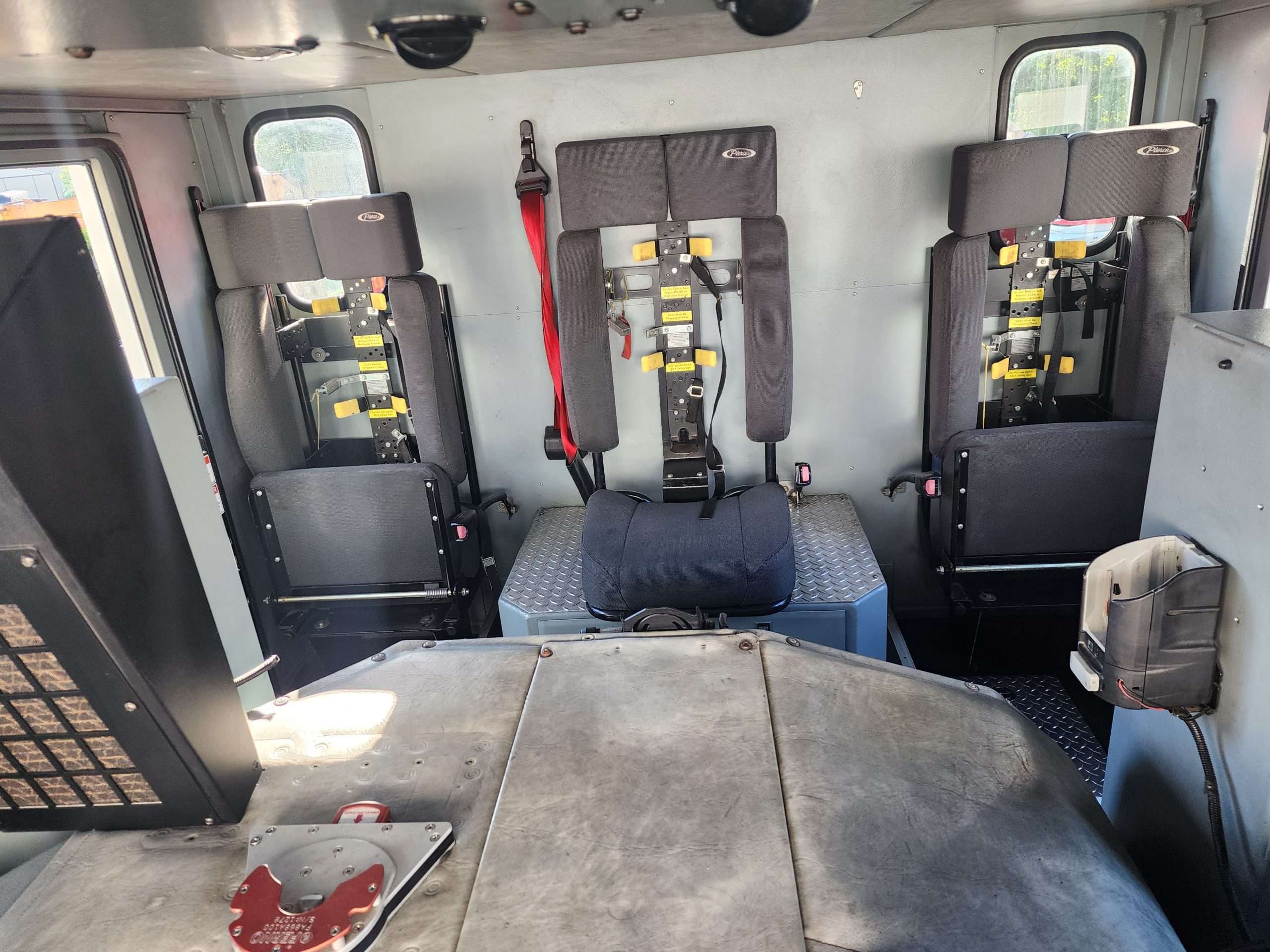

4) SCBA Seats
Air Conditioning
Medical Cabinets
Rear Camera
Hand Held Spot Light
Electric Siren

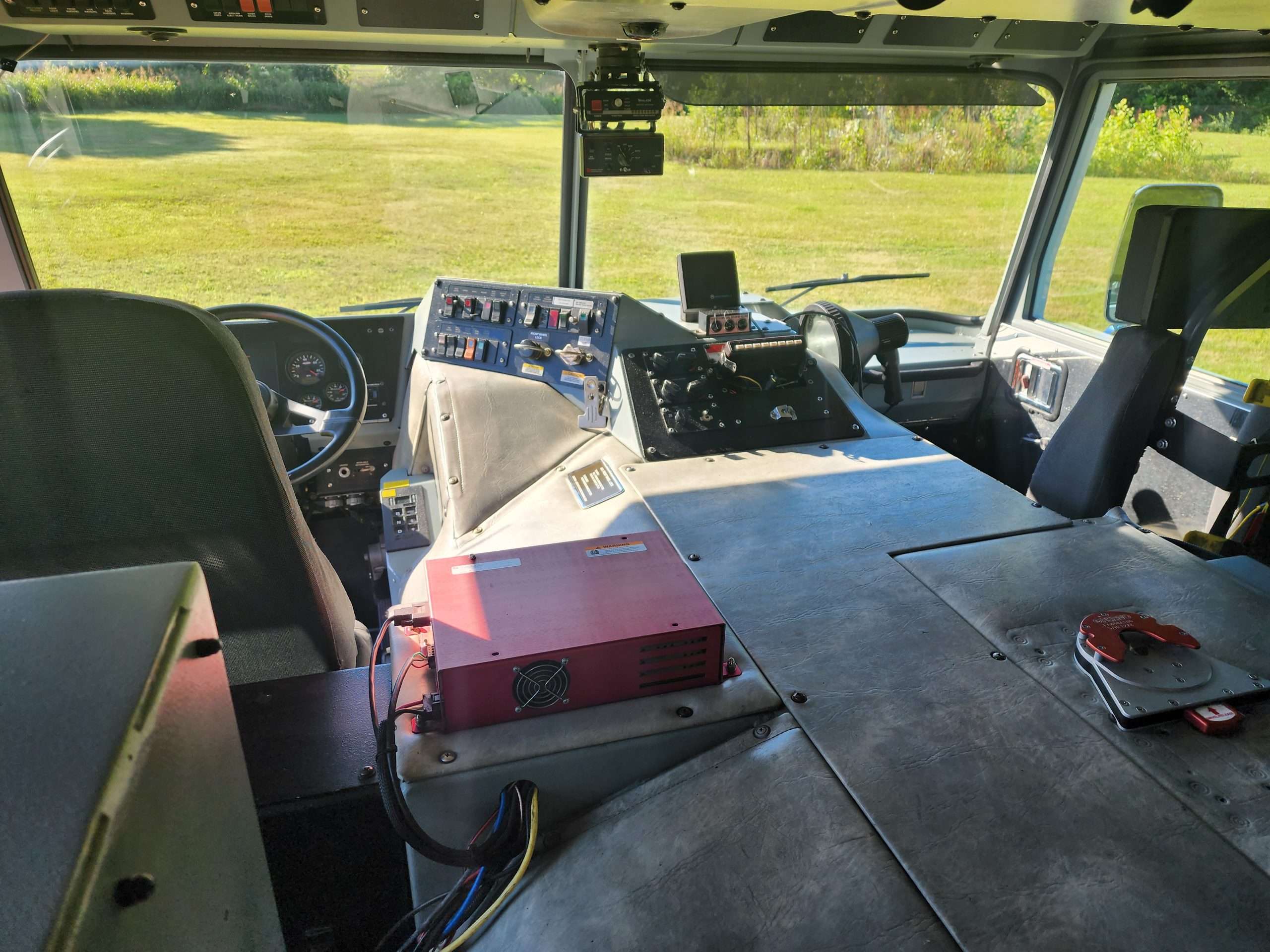

Kussmaul Auto Eject Charger
Federal Q

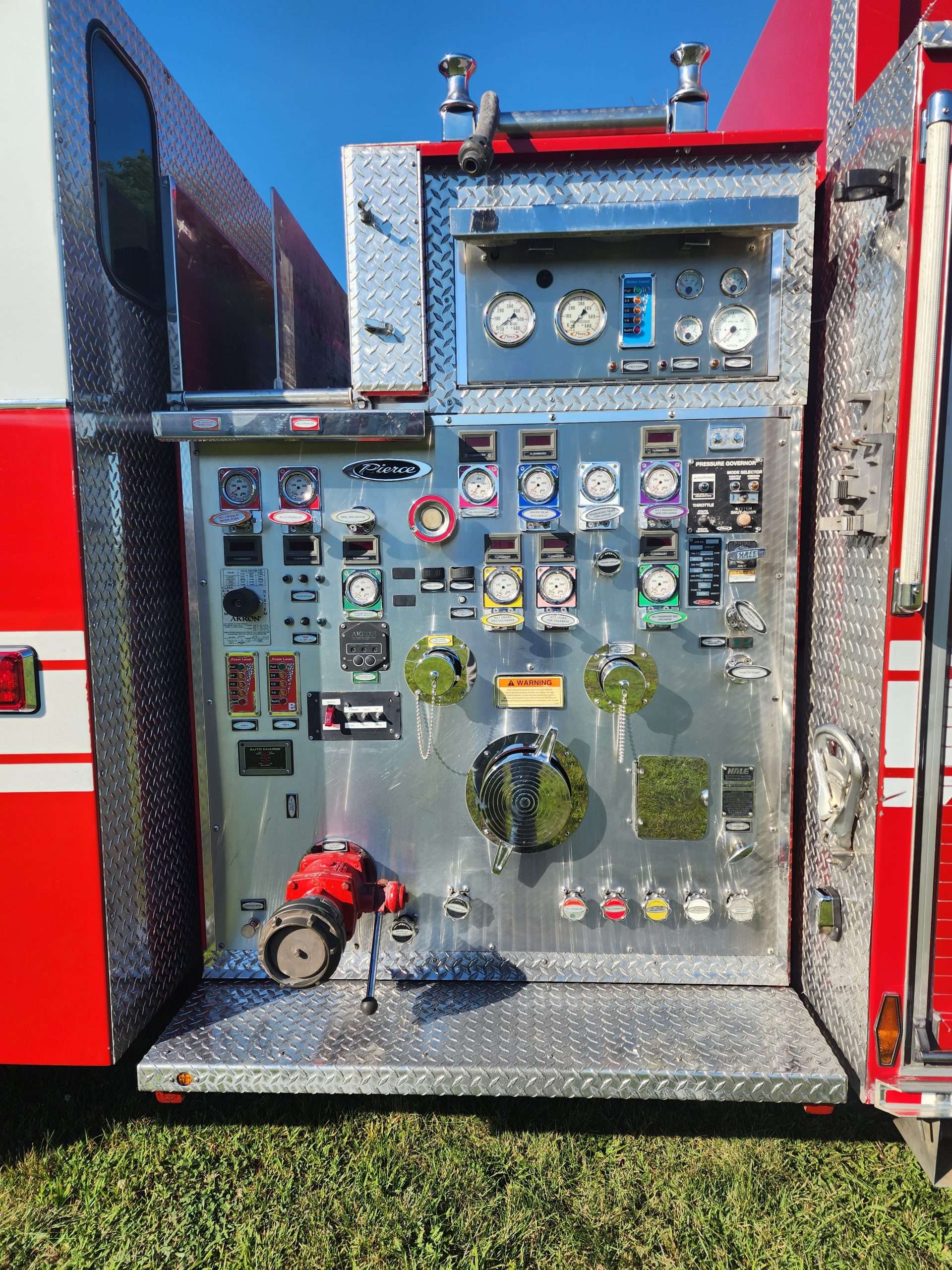

Hale Q-FLO 1500 GPM Pump
2000 Gallon Poly Tank
Rear Extendable Dump
(2) 1.5″ Crosslays

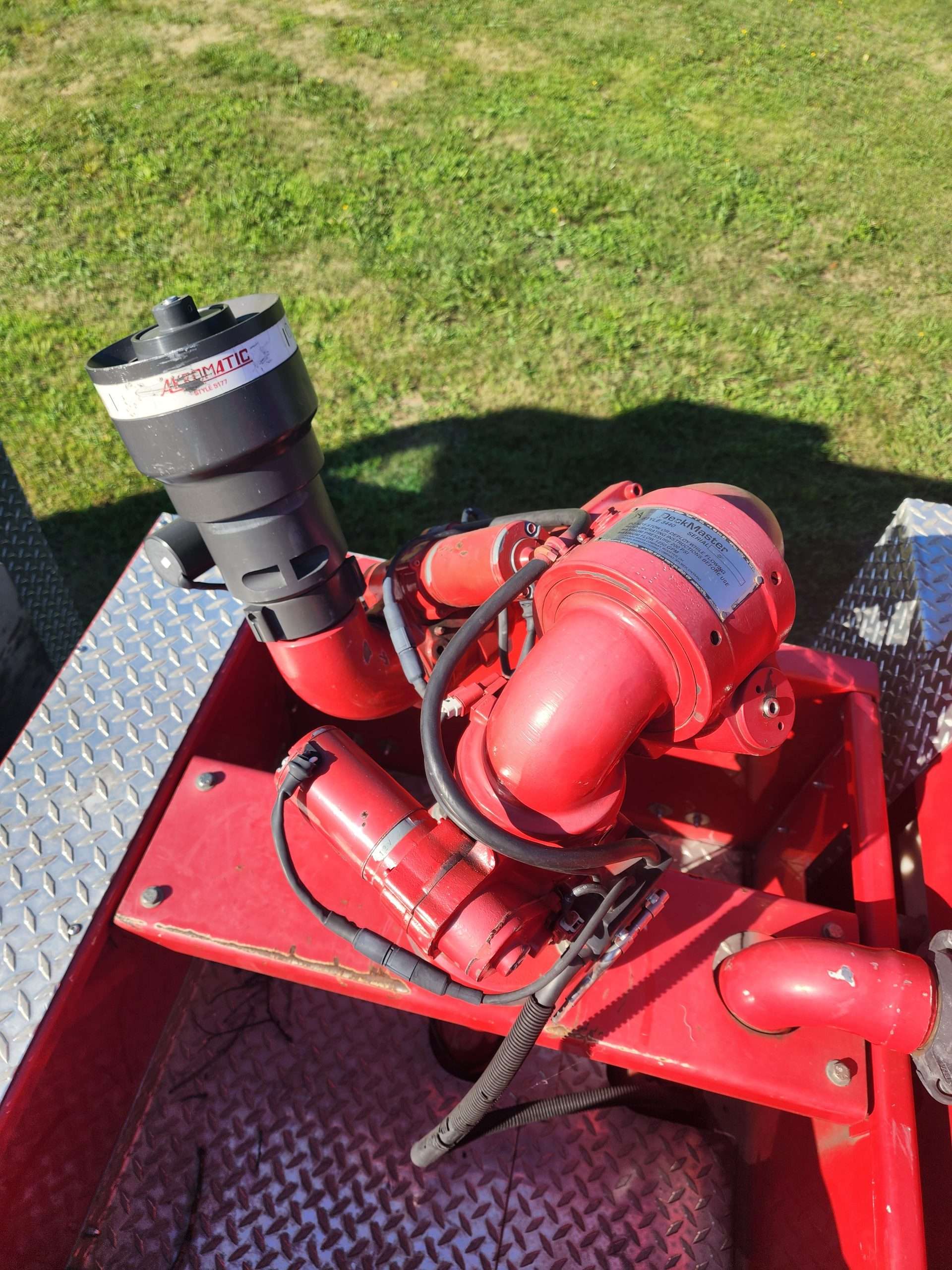

Electric Deck Gun with Fog/Stream Nozzle

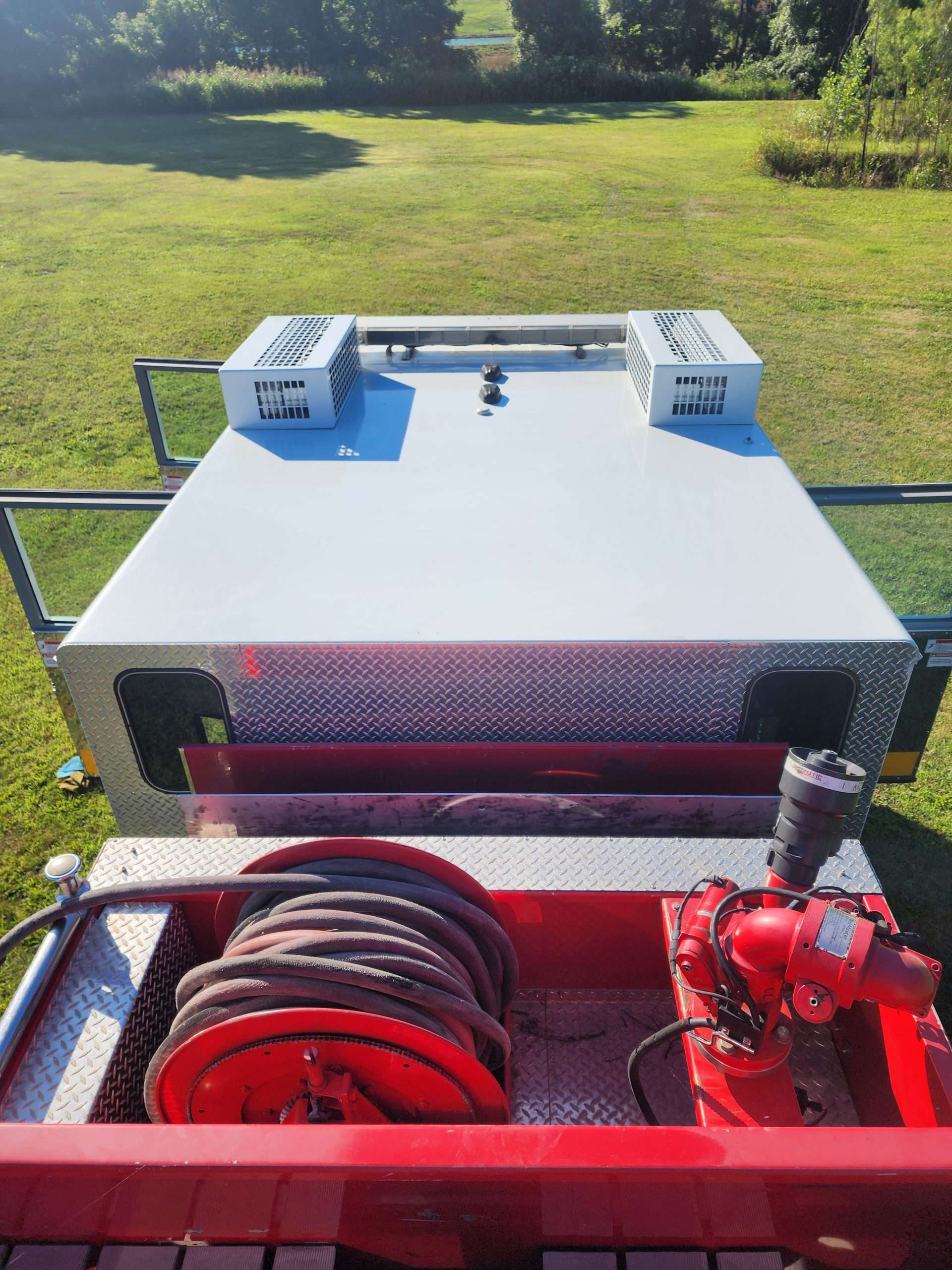

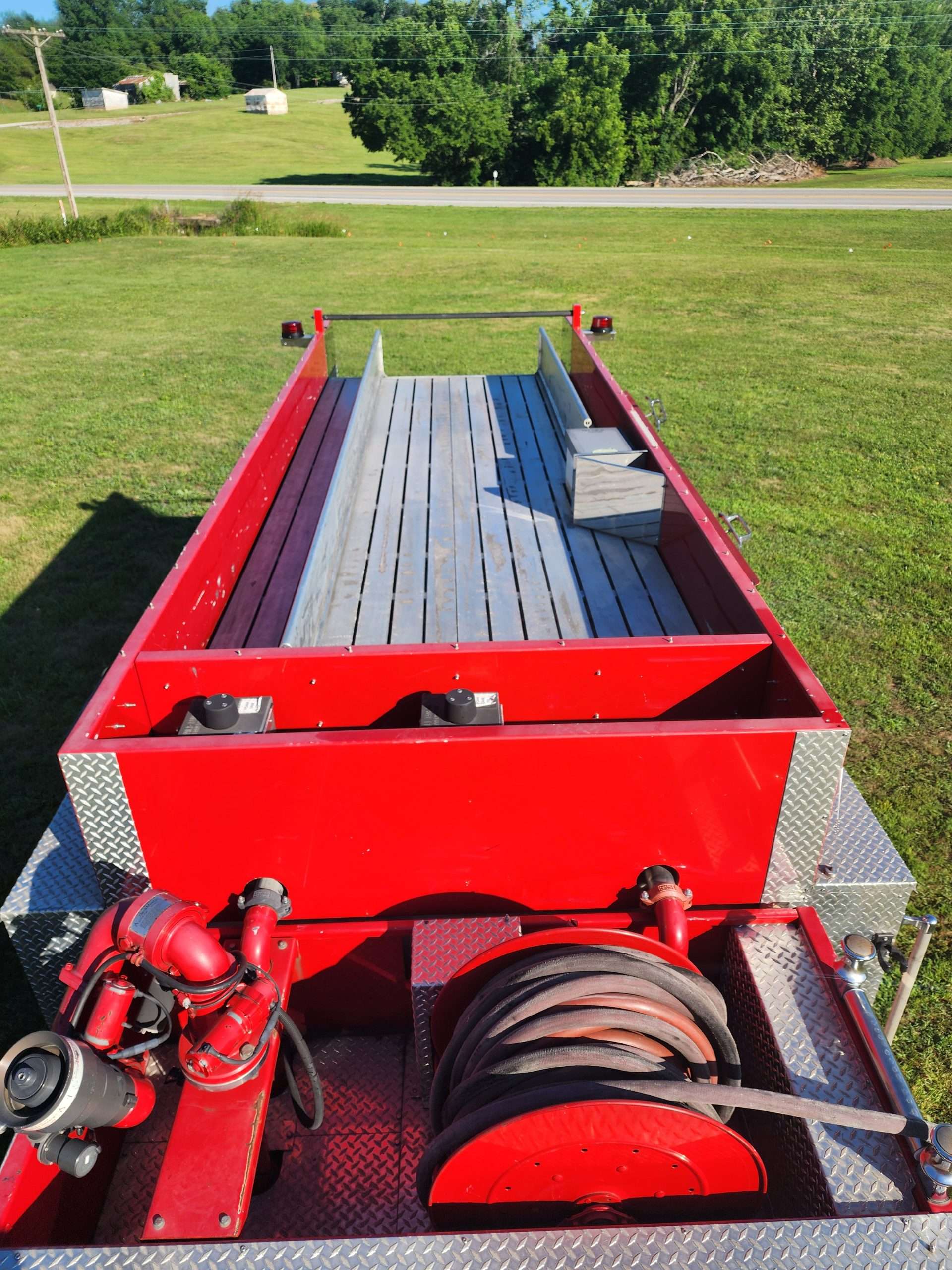

Upper Hose Reel
Drivers Side:
(2) 2.5″ Discharges
(1) 2.5″ Intake
(1) 6″ Suction
Passenger Side:
(1) LDH Discharge
(2) 2.5″ Discharge
(1) 2.5″ Intake
(1) 6″ Suction

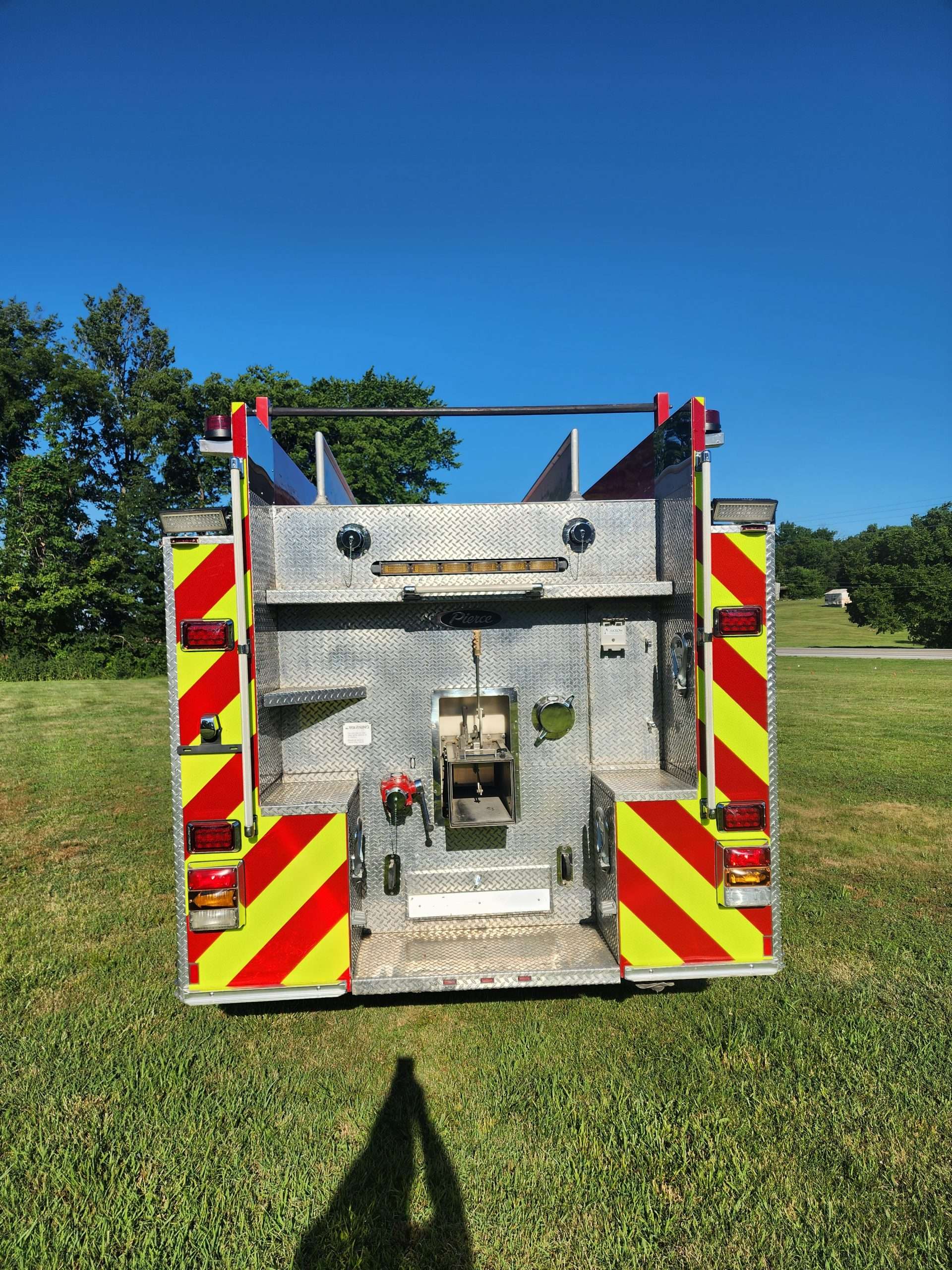

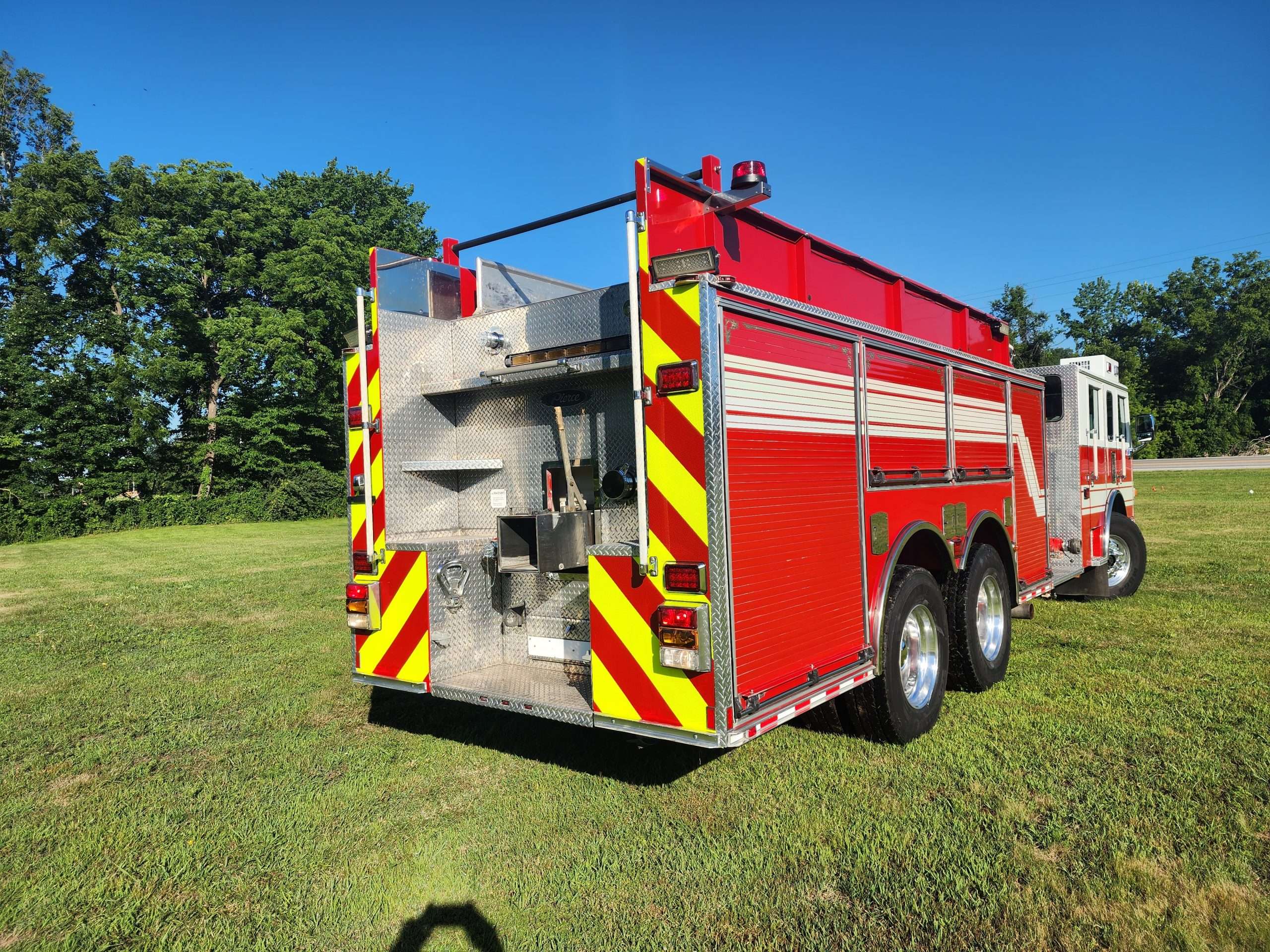

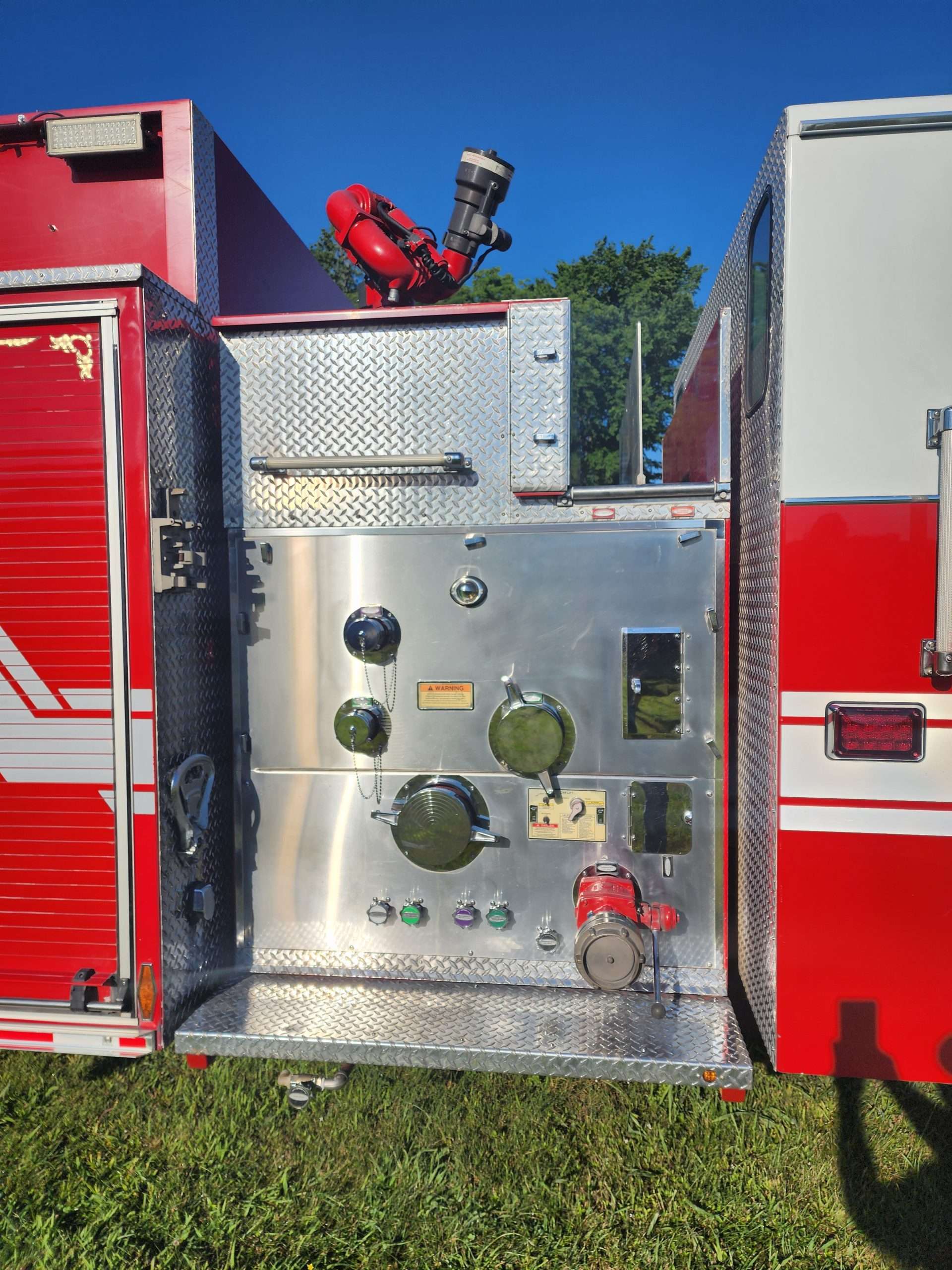

Rear:
(2) Upper Rear Discharges
(1) 2.5″ Direct Fill
(1) 4″ Inlet
Rear Dump Chute
(2) Draft Hoses
EVT Pump Certified

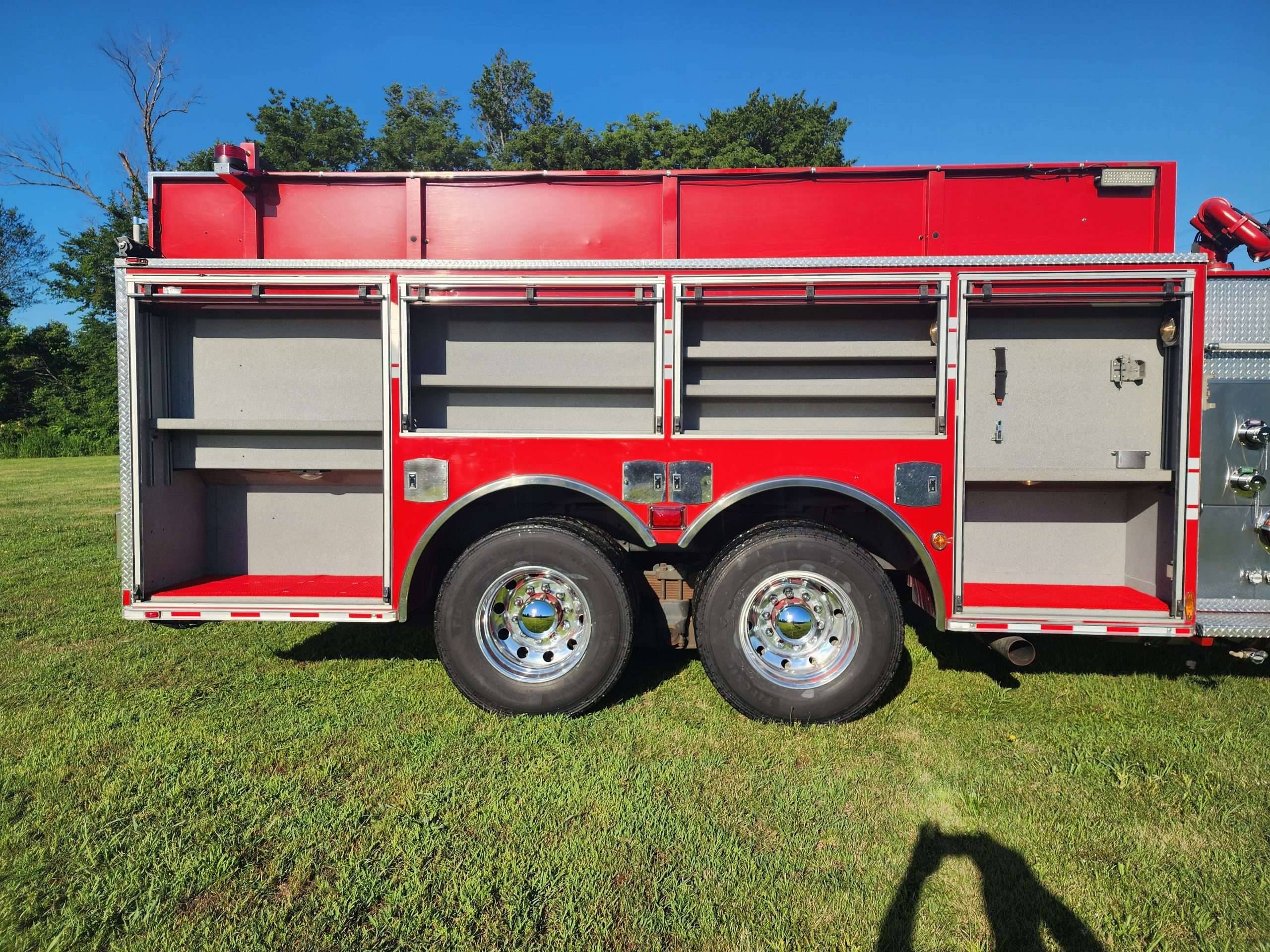

Drivers Side to Rear:
43″ Wide x 11″ Deep x 34″ Tall (Upper Section) 1 adjustable shelf
2) 53″ Wide x 11″ Deep x 26″ Tall (Adjustable Shelf)
3) 55″ Wide x 11″ Deep x 26″ Tall
4) 50″ Wide x 24″ Deep x 26″ Tall (Lower section)
50″ Wide x 11″ Deep x 34″ Tall (Upper Section)
Rear Has the Ladder Storage (Ladders not Included)
Passenger Side Front to Back:
43″ Wide x 11″ Deep x 34″ Tall (Upper Section) 1 adjustable shelf
2) 53″ Wide x 11″ Deep x 26″ Tall
3) 55″ Wide x 11″ Deep x 26″ Tall (Adjustable Shelf)
4) 50″ Wide x 24″ Deep x 26″ Tall (Lower section)
50″ Wide x 11″ Deep x 34″ Tall (Upper Section)

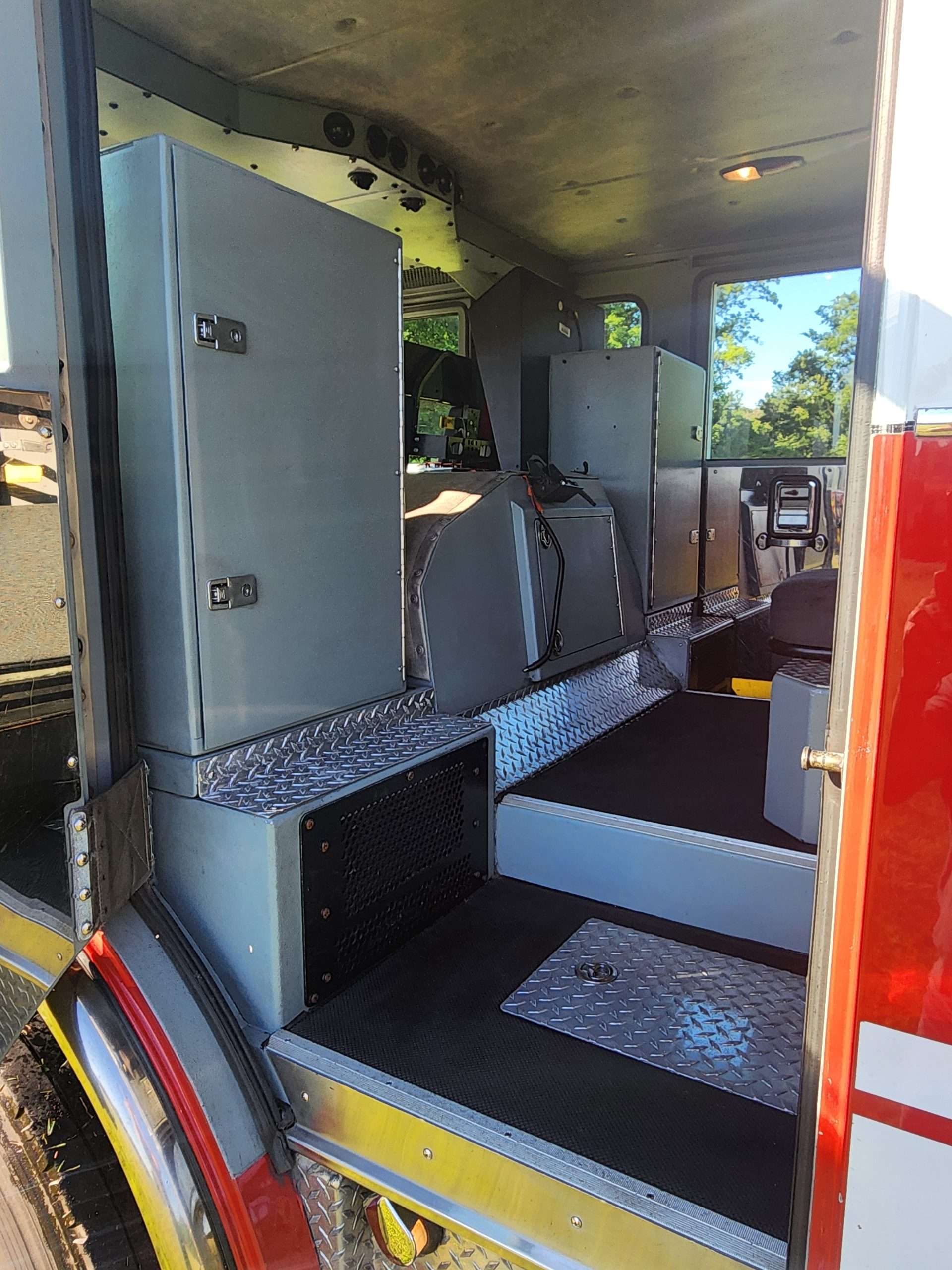

Medical Storage cabinets in Cab
(7) SCBA Holders on Tanker Body
Double Back Board Storage Upper Midship (Traverse)
LED Light Bar (RED)
(10) NEW LED Emergency Lights (RED)
(2) NEW Upper Rear LED Beacons (RED)
Work Lights
Rear Camera
Rear traffic Advisor
Federal Q Siren
Detroit 60 Series 515 HP
Allison Automatic
Hale Q-MAX 1500 GPM Pump
2000 Gallon Tank
9’11” Tall
34’10” Long
Fully Seviced
EVT Certified
